3D Scanner

Structured light scanner with double camera, tilting rotary plate and own integrated software to guide the scanning process.

  • Error< 5 micron
  • Repeatability 2 micron
  • Scanning time <20 seconds for the whole dental arch
  • Resolution > 120.000 triangles per single element
  • Resolution > 3.000.000 triangles for the whole dental arch

Output in standard STL format, not encrypted and perfectly able to integrate with EXOCAD and other main CAD software on the market.
Size (cm) 40 x 40 x 26 cm – Weight12 Kg

EACH SCAN IS ACCURATE AND PRECISE

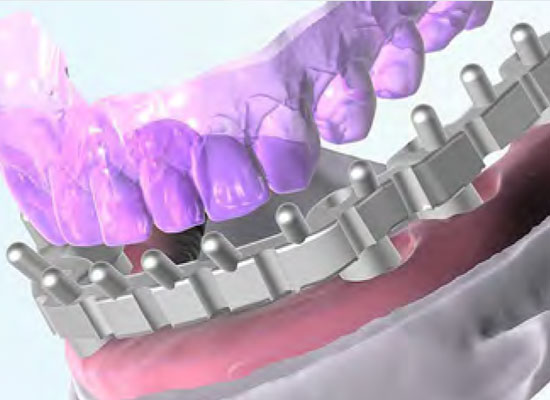

CAD Software

Exocad, developed by the Fraunhofer Institute in Frankfurt, is now a standard for dentistry design. It interfaces with both traditional and intraoral scanners.
Its highly intuitive behaviour (e.g. automatic recognition of closure edges and insertion axes) makes it easy to design single crowns as much as Toronto bridges.

Available, in addition to the standard module (crown, bridge frame, inlay/onlay, veneers, wax-up anatomic copying, etc.), modules for implants, implant bars, virtual articulator, true smile, bite splints. Optional annual upgrade.

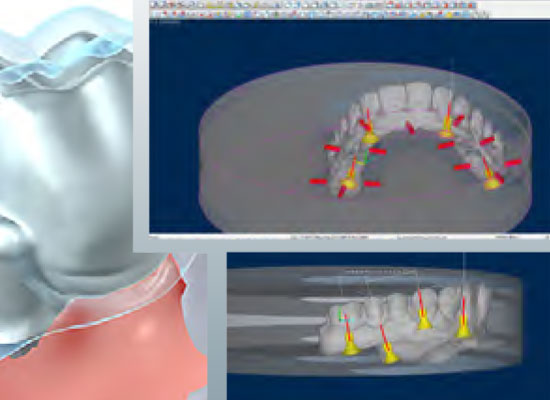

Dental Machine CAM Software

DentalCAM has been specifically developed to drive our 5-axis machines for the purpose of optimizing their operation and simplifying the use for dental technicians.
Current management has been reduced to a simple sequence of decisions, already proposed by the system (location on the disc, choice of strategy, tools to use, etc.).
The system is an open one: a more experienced dental technician can intervene and change each single stage during the process: the machine will grow along with your expertise!
Optional annual upgrade.

THE HIGHEST EFFICIENCY and PRODUCTIVITY
THE BEST SOFTWARE DESIGN WITH OPTIONAL ANNUAL UPGRADE

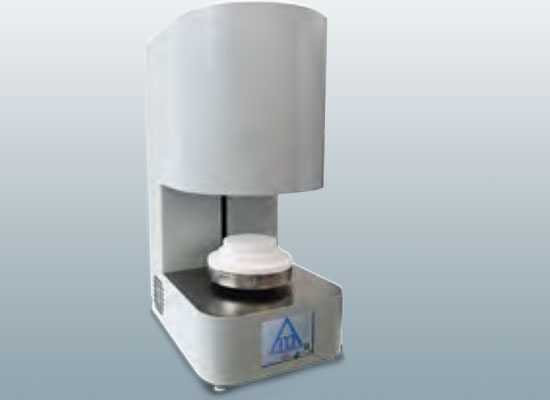

Sinterizing Oven Furnace

Sinterizing oven furnace for zirconium dioxide, made in Italy and particularly suited to markets where energy costs are at a premium, as it has a low power input (900 Watt and 230 Volt single phase) although it can reach 1,700 °C.

Chamber with 1.6 litre capacity (120 o x 120 H mm) bottom loading; heating elements in molybdenum disilicide. 1 preset sinterizing program, plus 9 to be set and saved by the user.
Size (cm): 32 x 42 x 69 H; Weight 26 Kg
